PVC Electrical Conduit Pipe Making Machine

PVC Electrical Conduit Pipe Making Machine Specification

Product Type
PVC Electrical Conduit Pipe Making Machine

General Use
Industrial

Material
Other

Type
Other

Capacity
40 Kg/hr

Weight (kg)
1 Tonne

Computerized
Yes

Automatic
Yes

Touch Screen
Yes

Control System
PLC Control

Surface Treatment
Polishing

Voltage
440 Volt (v)

Color
White & Blue

Warranty
1 Year

PVC Electrical Conduit Pipe Making Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
INDIA

Supply Ability
5 Units Per Month

Delivery Time
30 Days

Sample Available
No

Packaging Details
Standard Packing Or As Per Client's Requirement.

Main Domestic Market
All India

About PVC Electrical Conduit Pipe Making Machine

TECHNICAL DETAILS OF

TWIN SCREW EXTRUSION RPVC/UPVC PIPE PLANT (IS 4985) cKTS 110 Conduit

DESIGN PARAMETERS

1) 52 mm / 18D / 15 HP Twin Screw Extruder : One

2) Die-head with Suitable Die Pin Seizing Set : One

3) Hoppe Feeder with Loader -2 HP Gear Motor : One

4) Vacuum Sizing Tank : One

5) Tube Traction Unit : One

6) Tube Cutting Unit : One

7) Automatic Pipe Tilting Unit : One

8) Process Control Panel with synchronized by one master control : One

9) Conveyor Spring Hopper Loader : One

10) Heater Cooler Mixer : One

SPECIFIC DATA

1) Material to be Processed : RPVC/UPVC Compounding, Pulverized Scrap

2) Sizing Method : Vacuum Sizing

3) Max. Extrusion Output : Max. 110 Kg./Hr. (Depending upon Material, Pipe Size & Operating Skills)

4) Total Connected Load : 40* kW (Approx.)

5) Installation Machine Area : 20 Feet x 80 Feet

TECHNICAL DETAILS

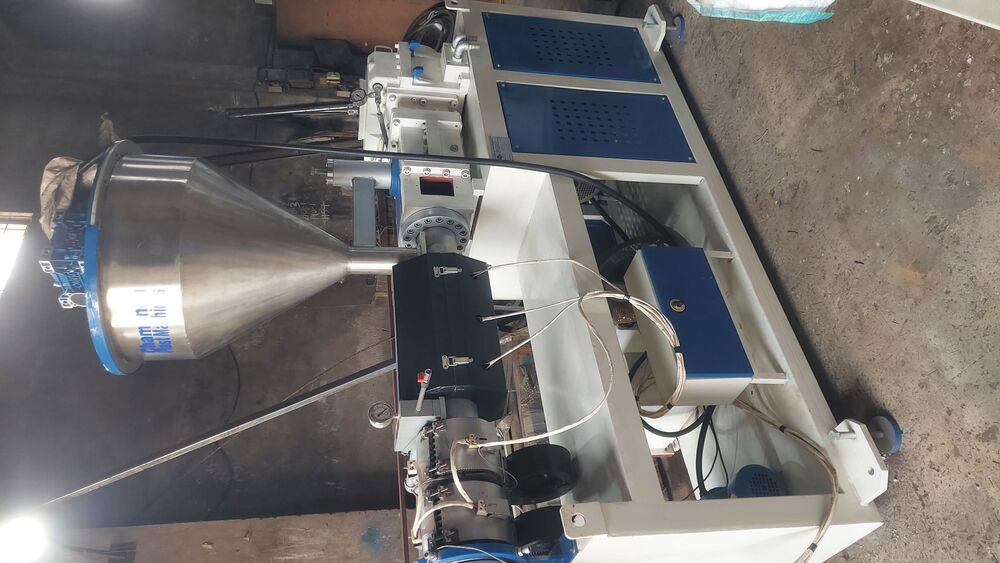

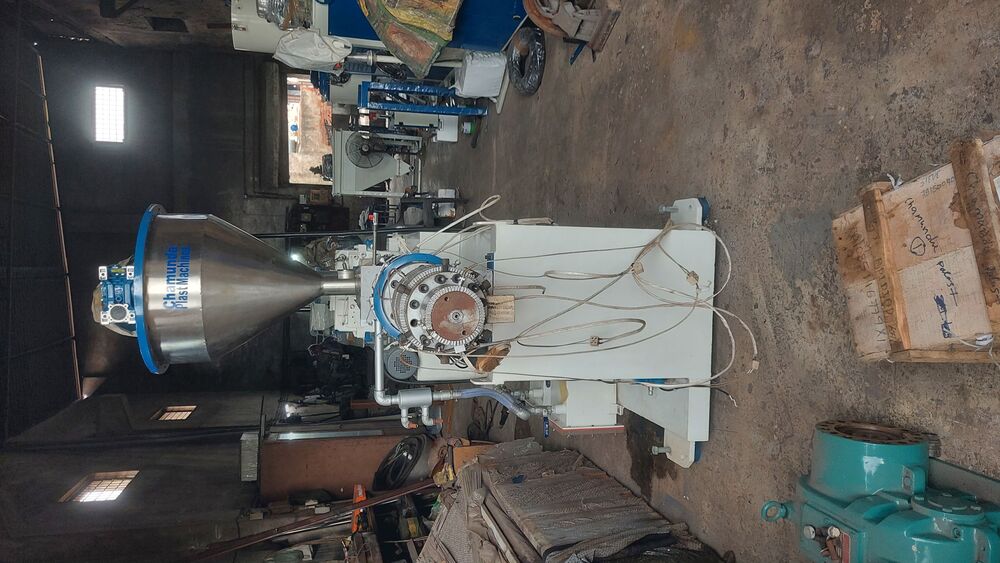

EXTRUDER MODEL cKTS 110

Extrusion : Counter Rotating Twin Screw Extruder

Screw Size : 52mm, L/D. Ratio - 18:1

Screw Speed Range : RPM 5.0 53

Screw Cooling : Screw has a through hole in the center, which is partly filled with THERMIC FLUID and plugged.

Screw Barrel Material : EN 41B Nitro alloy steel duly gas nitride (MUSKO)

Barrel : In Two Parts length wise with Twin Cylindrical Bores and Central Feed Opening

Gear Reducer : Helical Gearbox with heavy duty thrust bearing

Main Motor : AC Motor (ABB/Crompton) With Frequency Drive (ABB)

Barrel Heating Zones : 3 Heating Zones

Vertical Feeder : Gear Motor with Freq. Drive

Feeder Screw Range : RPM 8.1 7.5

Feeder System : By Steel S.S.-304 Fabricated Hopper of 110 Liters Capacity, Feed Section having Jacketed

VIBRATING HOPPER LOADER

Material of Construction : Mild Steel Fabricated

Material Conveying : Spiral Conveying System

DIE HEAD

Die Type : Spider Type

Heating Zones : 4 Heating Zones

Heating Loads : 8.5 kW.

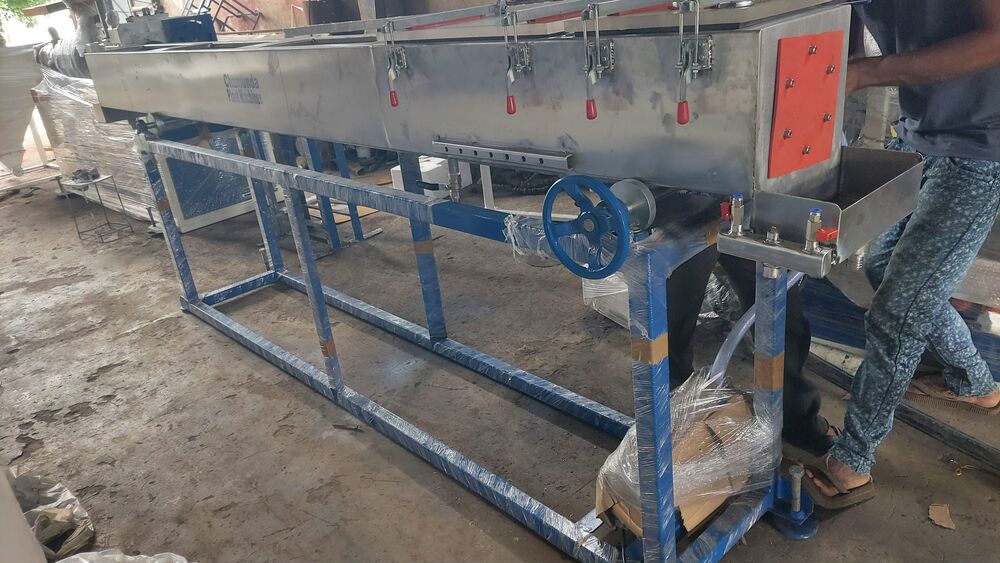

TUBE VACUUM SIZING TANK

Tank Table Material : Mild Steel Sq. Section Pipe

Cooling Method : Spray Type Nozzle

TUBE TRACTION UNIT

No. Of Tracks : 2 Tracks

Suitable Pipe Size : F20 ` F50 mm

Control mode : Traction speed control by extruder

TUBE AUTO CUTTING UNIT

Clamping Method : Pneumatically

Operating Method : Pneumatic

Forward Reverse : Auto Function

PIPE TILTING UNIT

Operating : Pneumatically

Structure : M.S. Fabricated Pipe Structure

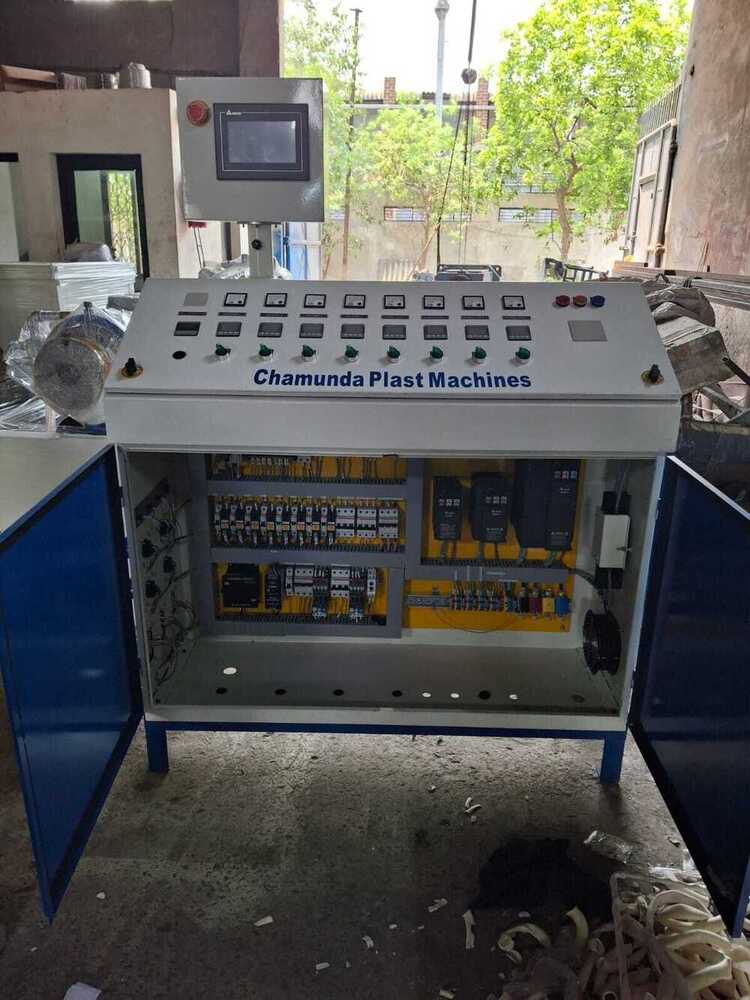

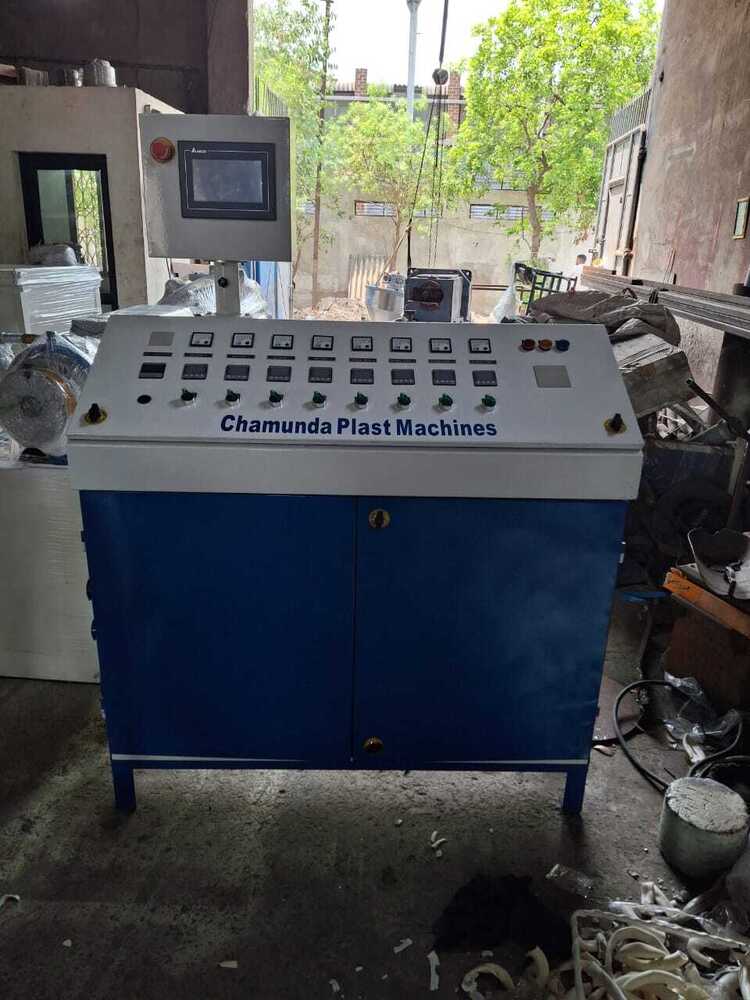

PROCESS CONTROL PANEL

Temp. Controllers : PID Controller (SELEC/MULTISPAN) with Auto tuning & dual display

MCB : Reputed make MCB (L&T) in line with every heating zone supply

Other Electrical Outfits : Amp. Meter, Contactors, Synchronization card, Inline choke for drives & standard cord wiring with PVC conduct channel framing

High Speed Heater Cooler Mixer 130 / 400

Batch Capacity : 40 Kg.

Mixer Driving Motor : Dual Speed 15/20 20 HP Motor (ABB)

Cooler Mixer Motor : Gear Motor 5 HP (ABB)

Mixing Tool RPM : 500 / 1000 Dual Speed / Single Speed

Mixer Motor Control : Star Delta Starter

FAQs of PVC Electrical Conduit Pipe Making Machine:
Q: What is the material used for this machine?
A: The material used for this machine is Mild Steel.

This PVC Electrical Conduit Pipe Making Machine is designed for high performance with a PLC control system for efficient operation. It has a capacity of 40 Kg/hr and is made of durable mild steel with a polished surface treatment. This machine is fully automatic and primarily used for industrial purposes.
